ATV/UTV 12V Winch, 4000-lb
#040-5953-6
$249.99
Best SellerExclusive
Unfortunately, this product is discontinued in your selected store and nearby stores.
You may be interested in these similar products shown below.Similar Items
Quebec residents: For information on maintenance and repair click here.
Similar Items
Product Details
This 12-volt ATV winch can pull up to 4000 pounds of vehicle out of the mud or rocks with ease. Perfect for adding some recovery power to your ride, the winch features a durable steel cable and remote for operating it from a distance. Best of all, at only 12 volts, it installs in a jiffy and won't hog your battery power. Now you can tackle those gnarly trails with confidence, knowing this UTV winch has your back should you end up needing a pull.
- Features
- Specifications
- Resources

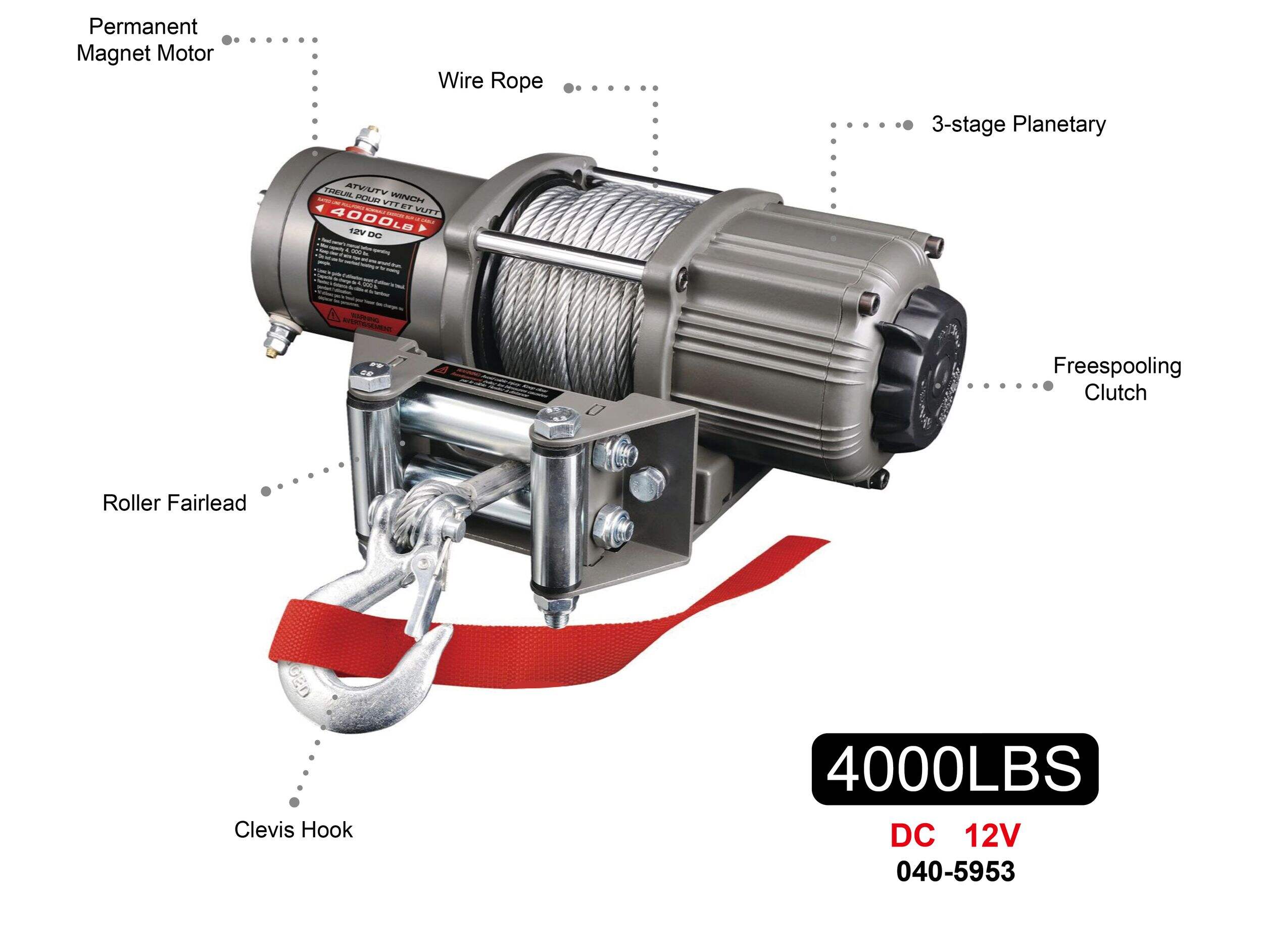

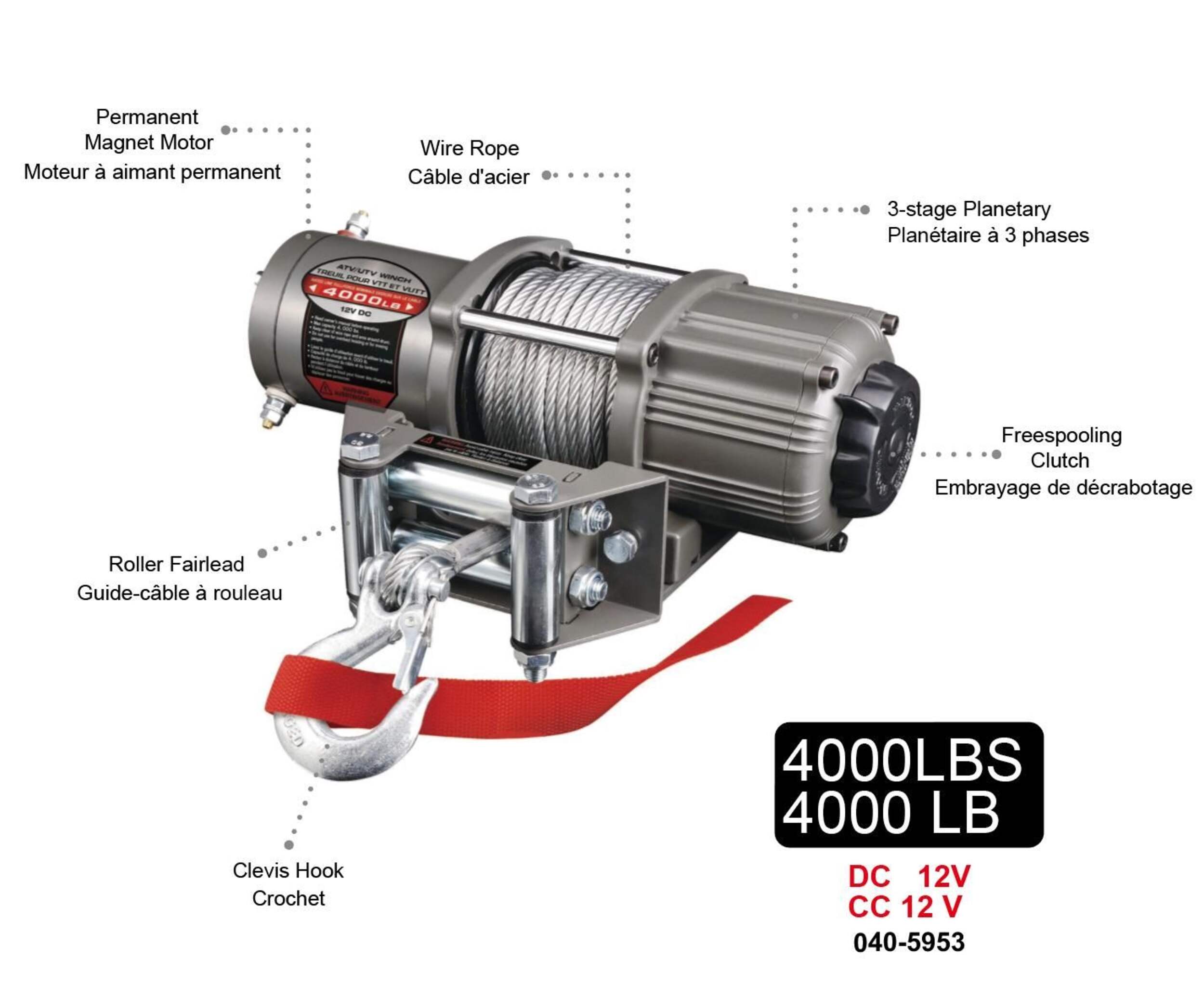

ATV/UTV 12V Winch features a 4,000-lb (1814 kg) rated line pull
Permanent magnet with 1.3 hp (0.95 kW), 12V DC motor
40' (12 m) wire cable assembly length
166:1 gear reduction ratio
Rocker switch for easy operation
Universal mounting plate for easy installation
Release function so that the cable can be pulled freely
3-stage planetary gear box provides lower noise, efficient power transition
Equipped with a roller fairlead to protect your vehicle from being scratched
| Part Number | CMS4000-A |
|---|---|

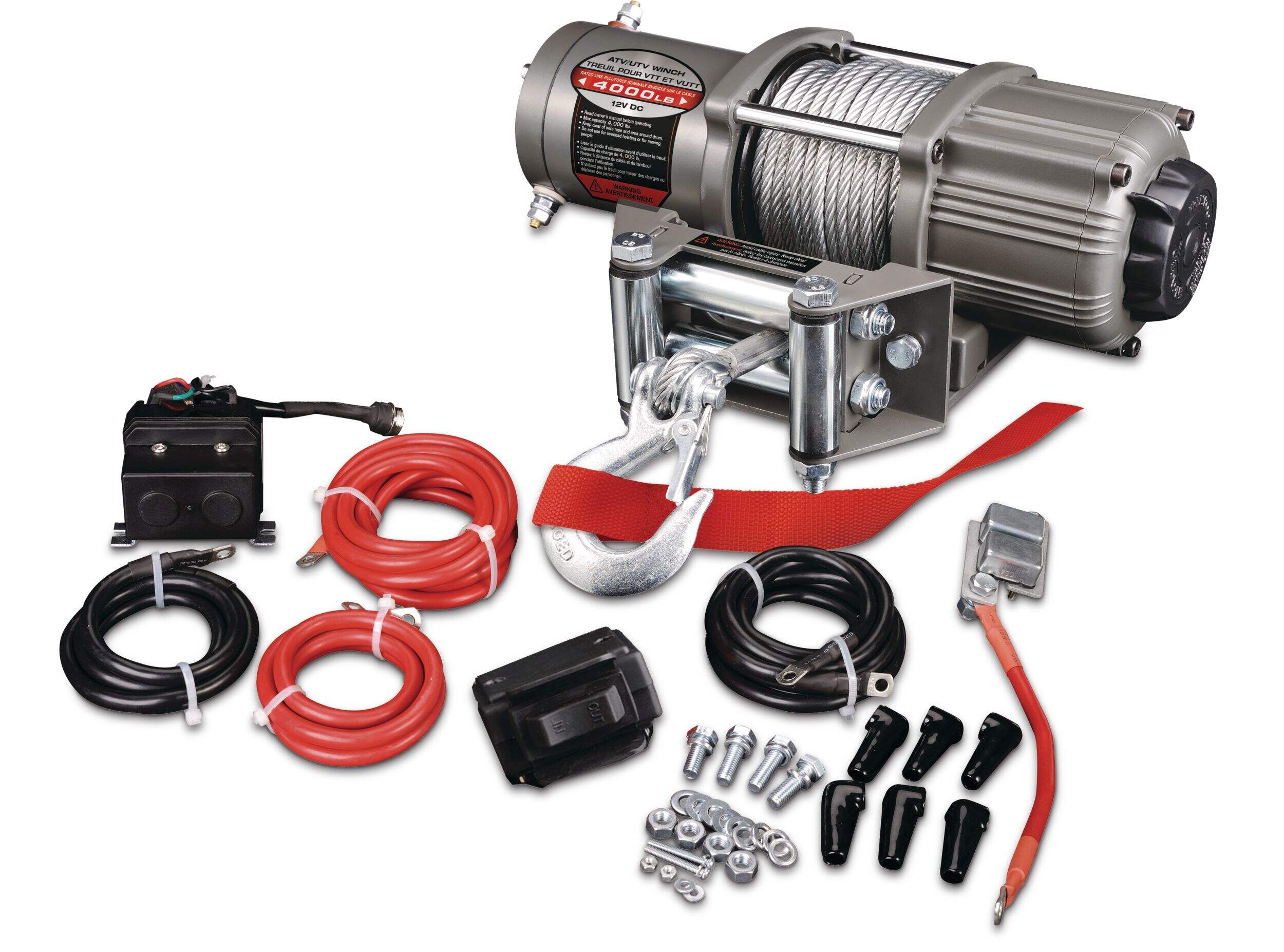

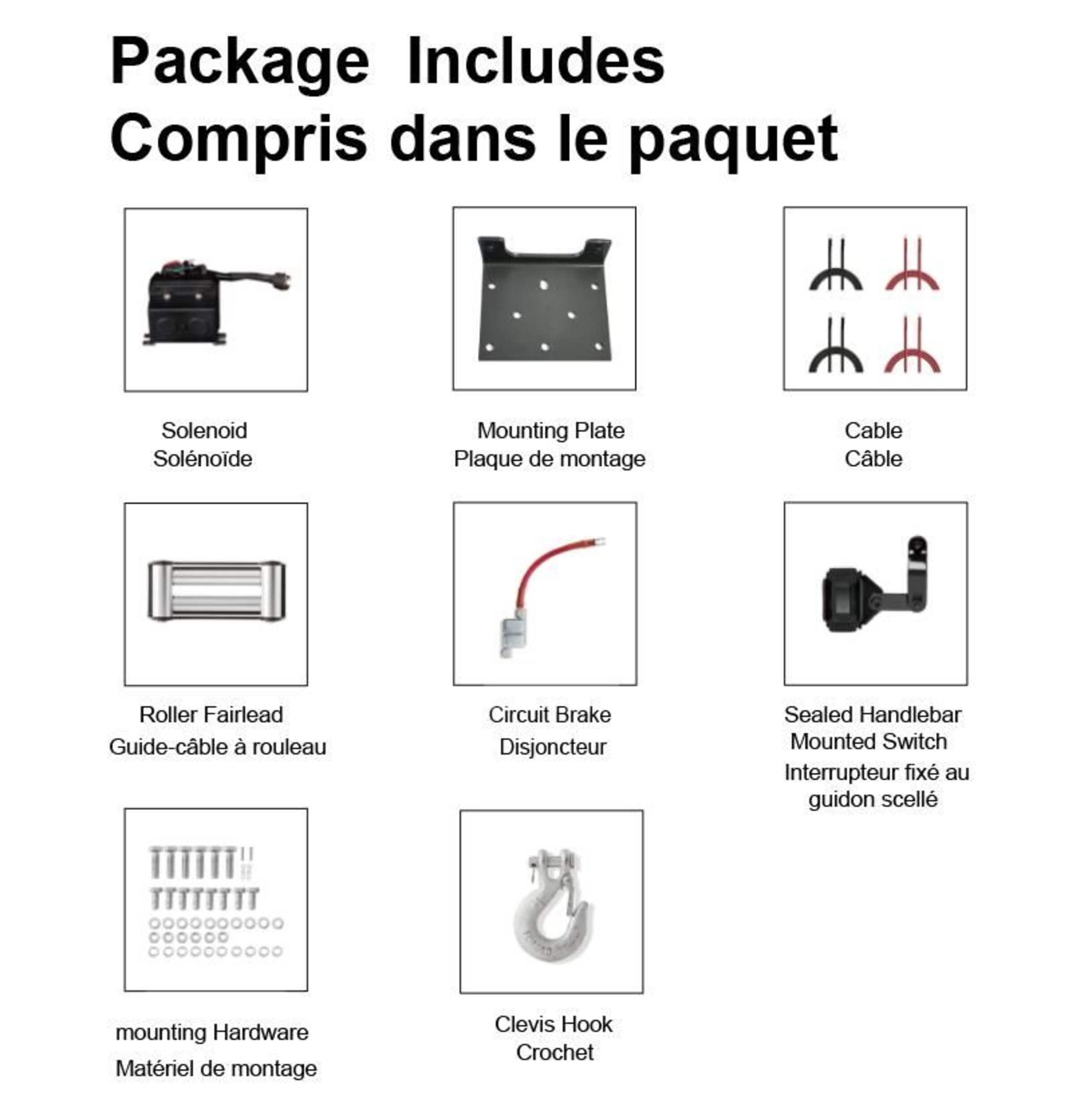

| Accessories List | Hook, Mounting Plate, Other, Remote Control |
| Advanced Features | No Advanced Features |
| Amperage | 300 A |
| Assembled Height (cm) | 11.80 cm |
| Assembled Height (ft) | 0.39 ft |
| Assembled Height (in) | 4.65 in |
| Assembled Length (cm) | 33.00 cm |
| Assembled Length (ft) | 1.08 ft |
| Assembled Length (in) | 12.99 in |
| Assembled Weight (kg) | 13.18 kg |
|---|---|
| Assembled Weight (lb) | 29.06 lb |
| Assembled Width (cm) | 11.80 cm |
| Assembled Width (in) | 4.65 in |
| Assembled Width (mm) | 118.00 mm |
| Batteries Required Quantity | 0 |
| Battery Voltage (V) | 12 V |
| Cable Length (ft) | 40.03 ft |
| Cable Length (m) | 12.20 m |
| Cord Gauge (ga) | Not Applicable |
| Cord Length (ft) | 0.00 ft |
| Cord Length (m) | 0.00 m |
| Cord Type | Not Applicable |
| Horsepower (HP) | 1 HP |
| Maximum Weight Capacity (g) | 1818000.00 g |
| Maximum Weight Capacity (kg) | 1818.00 kg |
| Maximum Weight Capacity (lb) | 4008.00 lb |
| Motor Type | Brushed |
| Number of Pieces | 1 |
| Package Depth (cm) | 40.00 cm |
| Package Depth (in) | 15.75 in |
| Package Height (cm) | 16.50 cm |
| Package Height (in) | 6.50 in |
| Package Weight (kg) | 13.45 kg |
| Package Weight (lb) | 29.65 lb |
| Package Width (cm) | 27.00 cm |
| Package Width (in) | 10.63 in |
| Primary Colour | Grey |
| Primary Material | Metal |
| Product Model Number | CMS4000-A |
| Pull Capacity (kg) | 1818.00 kg |
| Pull Capacity (lb) | 4008.00 lb |
Warranty
This product carries a 1 year exchange warranty redeemable at any Canadian Tire store.
Compare Similar Products
Only Show Differences | Currently Viewing | |||||
| Ratings | ||||||
| Accessories List | Hook, Mounting Plate, Other, Remote Control | Hook | Hook | No Accessories Included | Hook, Remote Control | |
| Advanced Features | No Advanced Features | Permanent Magnet | Permanent Magnet | No Advanced Features | Surge Protection, Non-Scratch, Non-Slip Grip | |
| Amperage | 300 A |
Shop Related Products
- Weekly Deals
- Customers Also Viewed
- Top Trending Products
- More From This Brand
Review Highlights
List of Pros Highlights
Pros
List of Cons Highlights
Cons
Suitable Cons could not be generated at this time.
Reviews

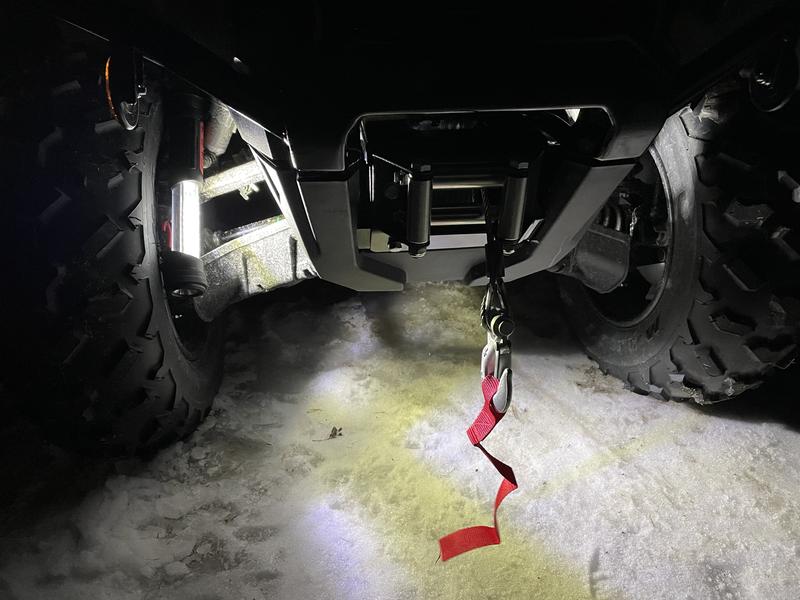

Customer Images and Videos
Filter Reviews
- purchase
- price
- for emergencies
- installation
- satisfaction
- snow
- instructions
- setup
Rating
Locale
1 to 5 of 63 Reviews
1 – 5 of 63 Reviews
Most Recent
5 out of 5 stars.
Patti f
a year ago
Second one we have bought works great
Helpful?
5 out of 5 stars.
Awesome price great winch
a year ago
Great price and easy installation with easy instructions
Helpful?
5 out of 5 stars.
Mine worked great
2 years ago
Comes with horizontal mount for ATV. Had to do some work to get a vertical mount for my tractor. Used it to drag some heavy logs out of the swamp. We maxed this thing out many times and it worked great. There is too much cable on it for easy spooling so I cut about 3 meters of cable off. Spooled great after that.
Helpful?
5 out of 5 stars.
Pulled a uforce600 out of clay.
2 years ago
Pulled a uforce600 out of clay. No problem at all. Used it for 4 full length pulls in 40 minutes and did not overheat. Would definitely buy again.
Yes, I recommend this product.
Helpful?
5 out of 5 stars.
Winch
2 years ago
Good product.
Easy to install.
Helpful?
1 – 5 of 63 Reviews
Questions
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 52 Questions
Most helpful answers
Q: can this winch be mounted upsidedown?
13 years ago3 Answers
A: Yes it will work upside down. This will change the position of the roller fairlead and the path of the cable. Keep that in mind as you want to ensure that the path of the cable is free from any obstacles.
12 years agoHelpful?
Q: What is the diameter and length of cable on the winch spool?
13 years ago3 Answers
A: Ad doesn't state diameter but does state "40' (12 m) wire cable length"
4 years agoHelpful?
Q: I want to use this to raise AND LOWER, an antenna tower (about 1000 pounds). Will this winch work to LOWER the tower? Or does it only free wheel out?
a year ago2 Answers
A: Yes it will work fine I used it to run a plow on. My truck in and out no problem
a year agoHelpful?
Q: Will it pull a boat onto the trailer
4 years ago2 Answers
A: Yes, depending on the size. I had a 3500 lb winch and with just the single cable an it would easily pull an 18 foot inboard bowrider onto my trailer.
4 years agoHelpful?
Q: How water proof is this winch I drive through some water holes don’t want to put on and have it wreck right away. Water is over the running boards, so would be submerged.
4 years ago2 Answers
A: My husband puts his winch under water on a regular basis with his quad. The winch is holding up good and shows no wear and tear from being submerged.
4 years agoHelpful?
Q: Bonjour, est-ce que ce treuil a les mêmes dimensions que le 3500 ? Treuil VTT/UTV, 3,500 lb 049-5958-8
6 years ago2 Answers
- Translate with Google
A: Comme ce treuil a les mêmes dimensions que le 3500 ( Treuil VTT/UTV, 3,500 lb 049-5958-8 ), est-ce qu'il est logique de penser que le bolt pattern n'installation sur la plaque est le même ? Merci
6 years agoHelpful?
Q: What attachment method is used and whats the max line length for synthetic cable? I'm looking to upgrade to a synthetic winch line wondering how the line is attached to the drum and how much space there is for additional line.
10 years ago2 Answers
A: Only buy 35ft or so 40 ft is too much for the 2 little bars on top rope gets jammed which you probably notice with the wire
6 years agoHelpful?
Q: does it come with a remote or just a mounted switch
11 years ago2 Answers
A: no remote. just comes with the mounted switch.
11 years agoHelpful?
Q: Bolt Pattern and Brand? Who makes this winch? and what is the bolting pattern
12 years ago2 Answers
A: It has the same bolt pattern as a Warn. Hope this helps...
12 years agoHelpful?
Q: ATV/UTV Winch 04059536 - There was no instruction manual in the package - can one be sent to us or do we have to return to get one?
2 years ago1 Answer
A: Don’t know. Should call customer service
2 years agoHelpful?
