Conquer any tough pull with the MotoMaster Steel Winch, built to handle rugged tasks with ease. Its heavy-duty steel rope and snap hook deliver serious strength, while a sealed control box keeps the winch ready for action, rain or shine. Need precision? The friction brake has your back, paired with a handle switch for easy control at your fingertips. Circuit-breaker protection and a free-spooling clutch add safety and convenience, making tough pulls feel effortless. With durable steel construction and a 4-way roller fairlead that keeps your vehicle scratch-free, this winch is all set to tackle whatever comes its way.

Features
Specifications
Resources

5.5 HP (4 kW) 12V series-wound DC motor
19.8 m (65') steel cable
218:1 gear reduction ratio
Suitable for ATVs, UTVs, Pickup trucks, SUVs, and other 4x4 vehicles
If your vehicle is not equipped for winch installation, a winch receiver (140-0073) or a mounting plate is required (140-0074)
Rated line pull: 8,500 lb (3,855 kg)

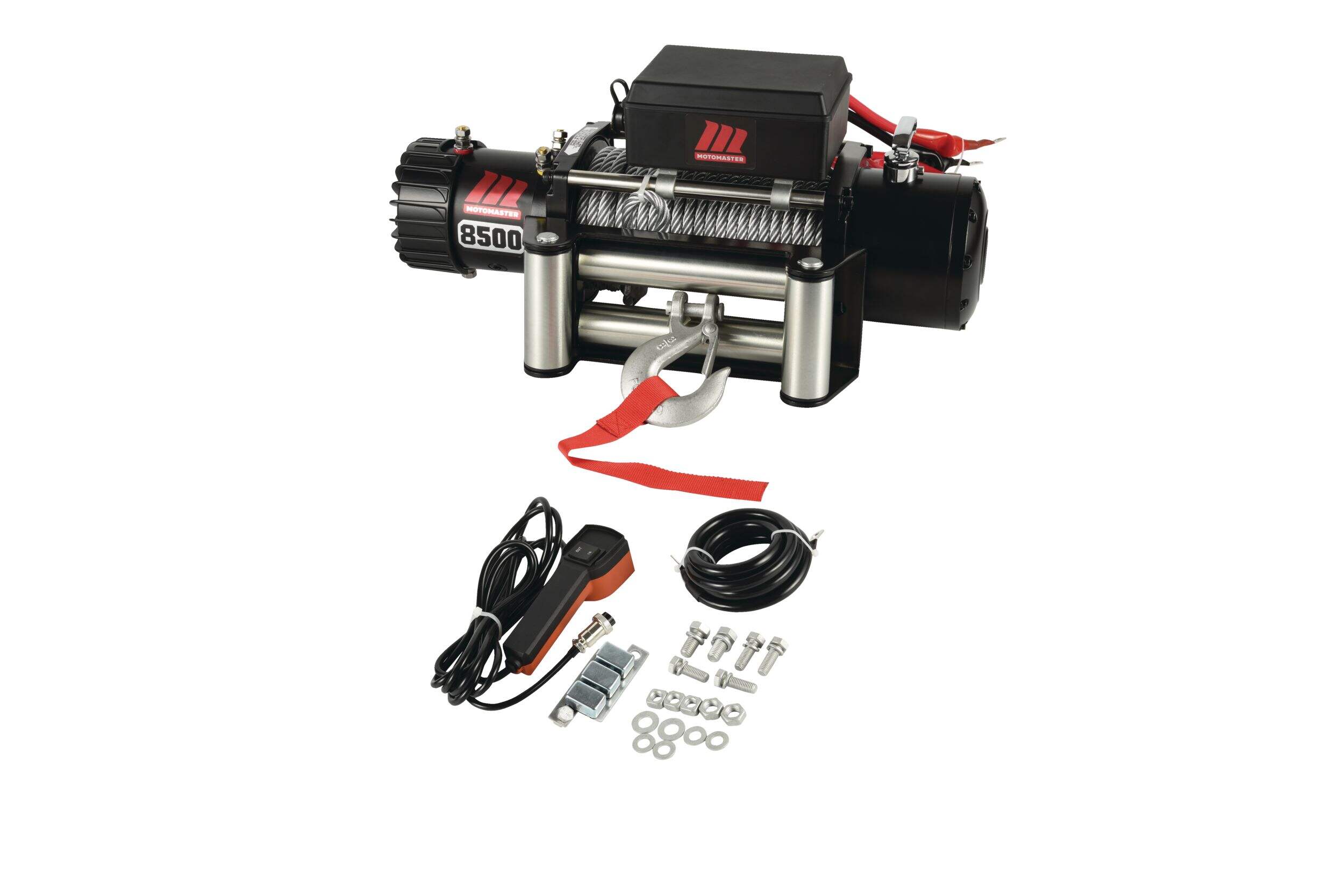

Includes: 4x4 roller fairlead, hook, red strap, switch controller, electrical wire, mounting hardware, circuit breaker, and instruction manual

Part Number	CM8500
Accessories List	Hook
Advanced Features	No Advanced Features
Assembled Height (cm)	21.20 cm
Assembled Height (ft)	0.70 ft
Assembled Height (in)	8.35 in
Assembled Length (cm)	53.00 cm
Assembled Length (ft)	1.74 ft
Assembled Length (in)	20.87 in
Assembled Weight (kg)	34.78 kg

Assembled Weight (lb)	76.68 lb
Assembled Width (cm)	16.00 cm
Assembled Width (ft)	0.52 ft
Assembled Width (in)	6.30 in
Assembled Width (mm)	160.00 mm
Batteries Required Quantity	1
Battery Amp Hours (amp-hour)	650 Ah
Battery Technology	Lithium-Ion
Battery Voltage (V)	12 V
Cable Length (ft)	64.96 ft
Cable Length (m)	19.80 m
Cord Gauge (ga)	Not Applicable
Cord Length (ft)	5.77 ft
Cord Length (m)	1.76 m
Cord Type	All Weather
Horsepower (HP)	4 HP
Maximum Weight Capacity (g)	3855000.00 g
Maximum Weight Capacity (kg)	3855.00 kg
Maximum Weight Capacity (lb)	8498.81 lb
Motor Type	Brushed
Number of Pieces	1
Package Depth (cm)	34.50 cm
Package Depth (in)	13.58 in
Package Height (cm)	26.00 cm
Package Height (in)	10.24 in
Package Weight (kg)	34.78 kg
Package Weight (lb)	76.68 lb
Package Width (cm)	60.00 cm
Package Width (in)	23.62 in
Primary Colour	Black
Primary Material	Metal
Pull Capacity (kg)	3855.00 kg
Pull Capacity (lb)	8498.81 lb

Our return policy

View full return policy

Return Policy

Warranty

This product carries a 2 year exchange warranty redeemable at any Canadian Tire store.

	Only Show Differences	Currently Viewing MotoMaster Winch with Steel Rope, 12000-lb $629.99	MotoMaster Steel Rope Winch with Wireless Remote, 2000-lb $159.99	Warn VRX 35 Power Sports Winch with Steel Rope, 3500-lb $684.99	Superwinch Winch2Go Steel Rope $439.99
Ratings
Accessories List	Hook	Hook	Remote Control, Hook	No Accessories Included
Advanced Features	No Advanced Features	Permanent Magnet	No Advanced Features	No Advanced Features
Assembled Height (cm)	21.20 cm	10.50 cm	30.48 cm	193.00 cm

Shop Related Products

Weekly Deals
Customers Also Viewed
Top Trending Products
More From This Brand

Weekly Deals

Warn VR12 Truck Winch, 12,000-lb

$1,199.99

2 In Stock

Champion Winch with Synthetic Rope and Rocker Switch, 7500-lb

$699.99

In Stock Online

Champion Power Equipment 13004 Winch Kit, 3000-lb

$179.99

Save 22% ($50.00)

7 In Stock

Champion Power Equipment 14051 Synthetic Rope Winch Kit, 4,500-lb

$449.99

4 In Stock

MotoMaster Steel Hitch Basket Cargo Carrier, 500-lb Capacity, Black

$149.99

2 In Stock

Current item

MotoMaster Winch with Steel Rope, 8500-lb

$579.99

WeatherTech Vent Visor, Kit

$164.99

$744.98

Review Highlights

List of Pros Highlights

List of Cons Highlights

Suitable Cons could not be generated at this time.

Reviews

Rating Snapshot

Select a row below to filter reviews.

1 review with 5 stars.

0 reviews with 4 stars.

0 reviews with 3 stars.

0 reviews with 2 stars.

0 reviews with 1 star.

Overall Rating

5.0

1 out of 1 (100%) reviewers recommend this product

Review this product

Select to rate the item with 1 star. This action will open submission form.

Select to rate the item with 2 stars. This action will open submission form.

Select to rate the item with 3 stars. This action will open submission form.

Select to rate the item with 4 stars. This action will open submission form.

Select to rate the item with 5 stars. This action will open submission form.

Adding a review will require a valid email for verification

Customer Images and Videos

Filter Reviews

1 to 1 of 1 Review

1 – 1 of 1 Review

5 out of 5 stars.

Great buy

4 months ago

Awesome winch. Put it on my toyota. Super easy to install. Spent 7 hours non stop use winching my dead 1 ton on on 40s up a steep hill and it worked awesome 👌

Yes, I recommend this product.

Helpful?

Questions

1 - 2 of 2 Questions

Q: Can I re-spool this winch with synthetic line? If so, how many feet of line can I put on it?

a year ago

1 Answer

A: Yes, you can re-spool with synthetic line. A recommended line would be 50 feet in length.

9 months ago

Helpful?

Q: Does anyone know if the gears inside are plastic or steel. Thanks

6 months ago

0 Answers
