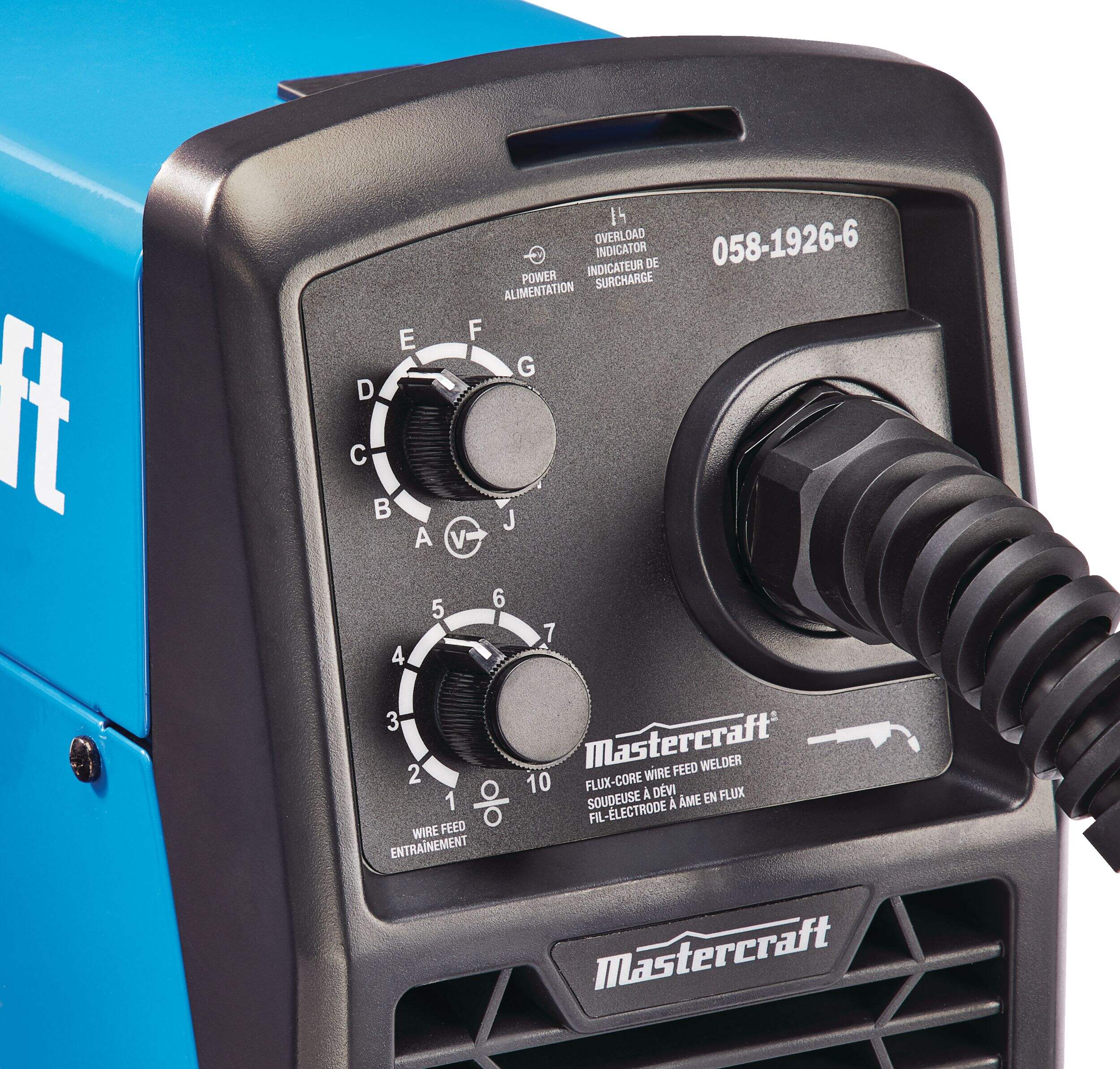

The Mastercraft 115V Flux Core 125i Inverter Welder is a lightweight welding unit designed for portability and efficient operation. With a consistent weld arc and voltage control, this versatile inverter welding unit comes with a 6-ft grounding cable, clamp, 6-ft flux core MIG torch and a belt for your convenience. The compact size and lightweight design make this the perfect welder for job sites away from home.
Requires no gas making it perfect for jobs on-the-go
DC power creates a smooth, stable weld arc
Infinite wire speed and voltage control lets you adjust the output to your needs
Built with thermal overload protection
Can use 0.030", 0.035" flux-cored wire
115V 1 Phase input
Duty cycle: 30% at 90A
Weld metal thickness: 18 gauge-3/16" (1.2-4.75mm)
| Part Number | 90260710024 |
|---|---|
| Minimum Weldable Thickness (in) | 0.05 in |
| Maximum Weldable Thickness (in) | 0.19 in |
| Minimum Weldable Thickness (mm) | 1.20 mm |
| Maximum Weldable Thickness (mm) | 4.80 mm |
| Input Voltage (V) | 120 V |
| Output Amperage (amps) | 125 A |
| Duty Cycle | 30 |
| Welding Process | Flux-cored, Inverter, Wire Feed |
| Output Voltage (V) | 20 V |
| Certifications | CSA Listed |
|---|---|
| Assembled Height (in) | 12.99 in |
| Assembled Weight (lb) | 17.20 lb |
| Primary Material | Metal |
| Primary Colour | Blue |
| Polarity | DC |
| Accessories List | Nozzles, Other, Tips, Torch |
| Number of Pieces | 1 |
| Power Source | Hardwired/Plug In |
| Display Type | No Display |
| Advanced Features | Continuous Operation, Versatile welding range |
| Input Hertz (Hz) | 60 Hz |
| Assembled Width (in) | 17.13 in |
| Assembled Length (in) | 9.06 in |
Only Show Differences | Currently Viewing | ||||
| Ratings | |||||
| Minimum Weldable Thickness (in) | 0.02 in | 0.05 in | 0.04 in | 0.04 in | |
| Maximum Weldable Thickness (in) | 0.25 in | 0.19 in | 0.19 in | 0.19 in | |
| Minimum Weldable Thickness (mm) | 0.60 mm | 1.20 mm | 1.00 mm | 1.00 mm |
